USB VNAS EXTEND YOUR REACH® Acces|

1-Port USB VNAs to 18 GHz

SMD Test Solution to 20 GHz

Compact USB VNAs to 44 GHz

Cobalt USB VNAs to 20 GHz

75 Ohm Solutions to 3 GHz

mmWave Solutions to 330 GHz

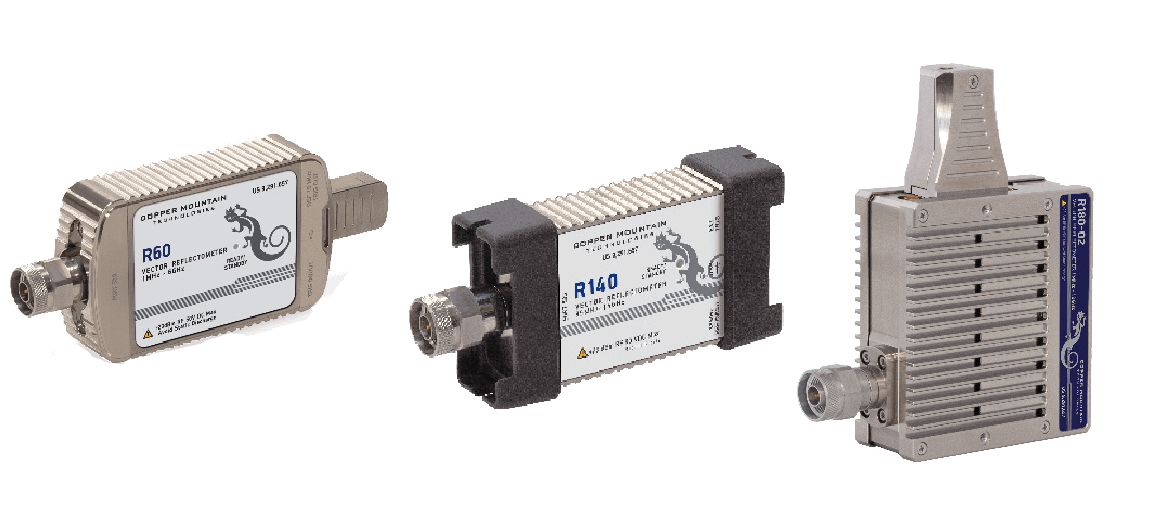

1-Port USB VNAs

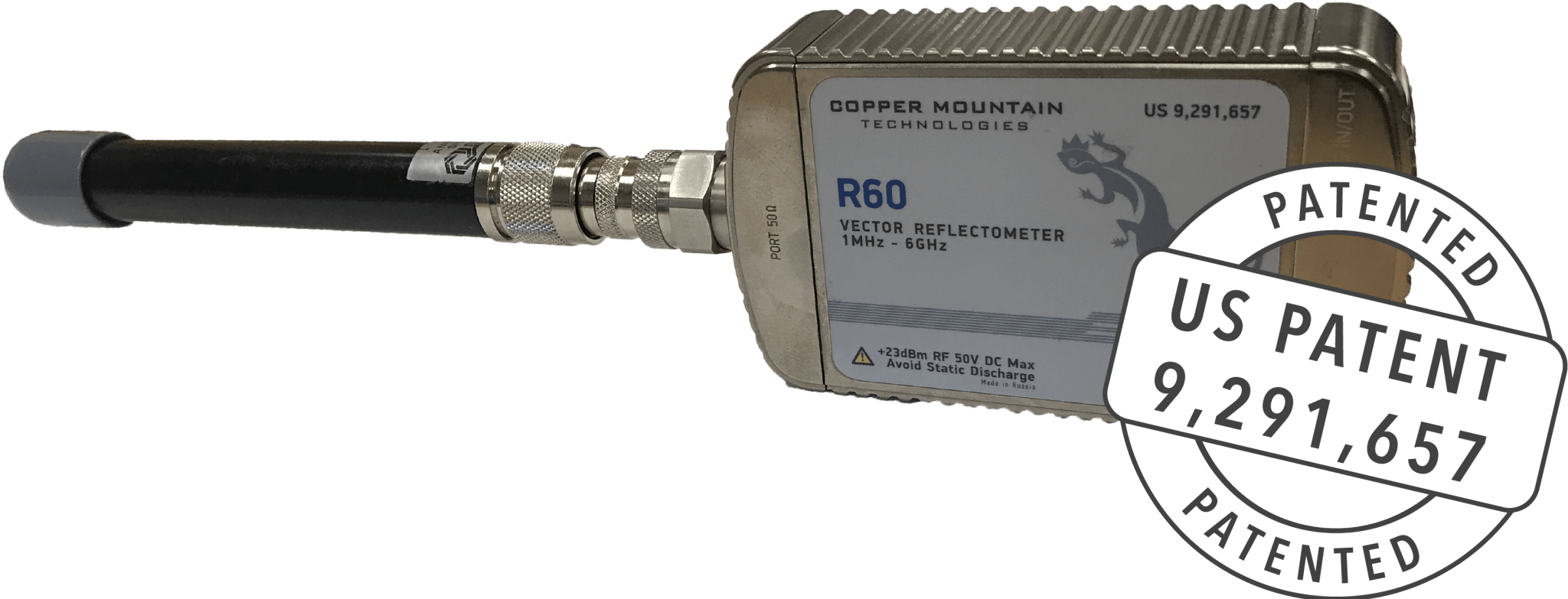

Our patented 1-Port VNAs (cable and antenna analyzers) perform lab quality measurements connecting directly to the DUT without the need for a test cable (Patent US 9,291,657). The result is increased accuracy and quality of VNA measurements with a handheld instrument. If you have a specific need with one of our 1-Port USB VNAs you can let us know by visiting our applications page and filling out the form with your specifications.

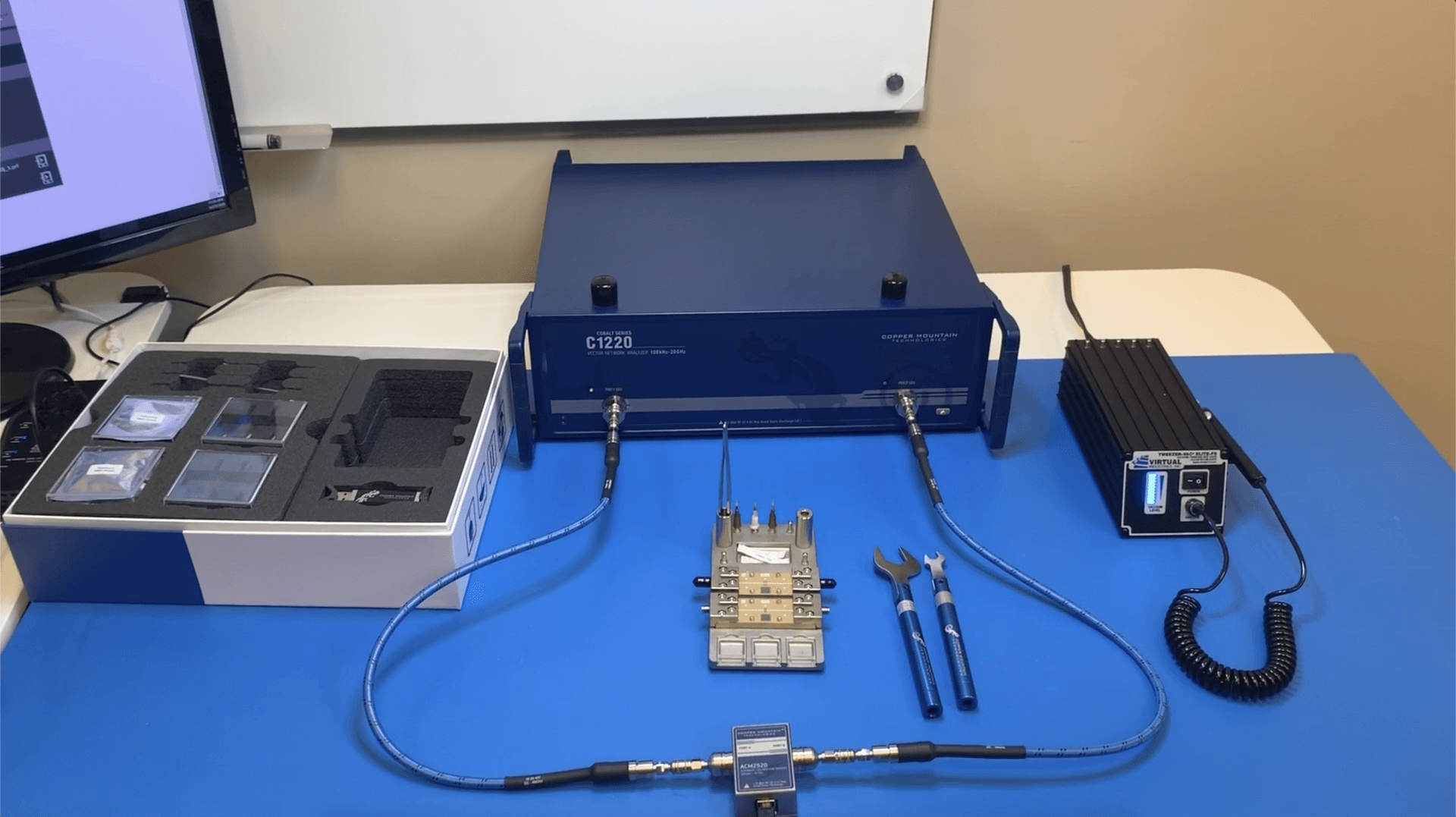

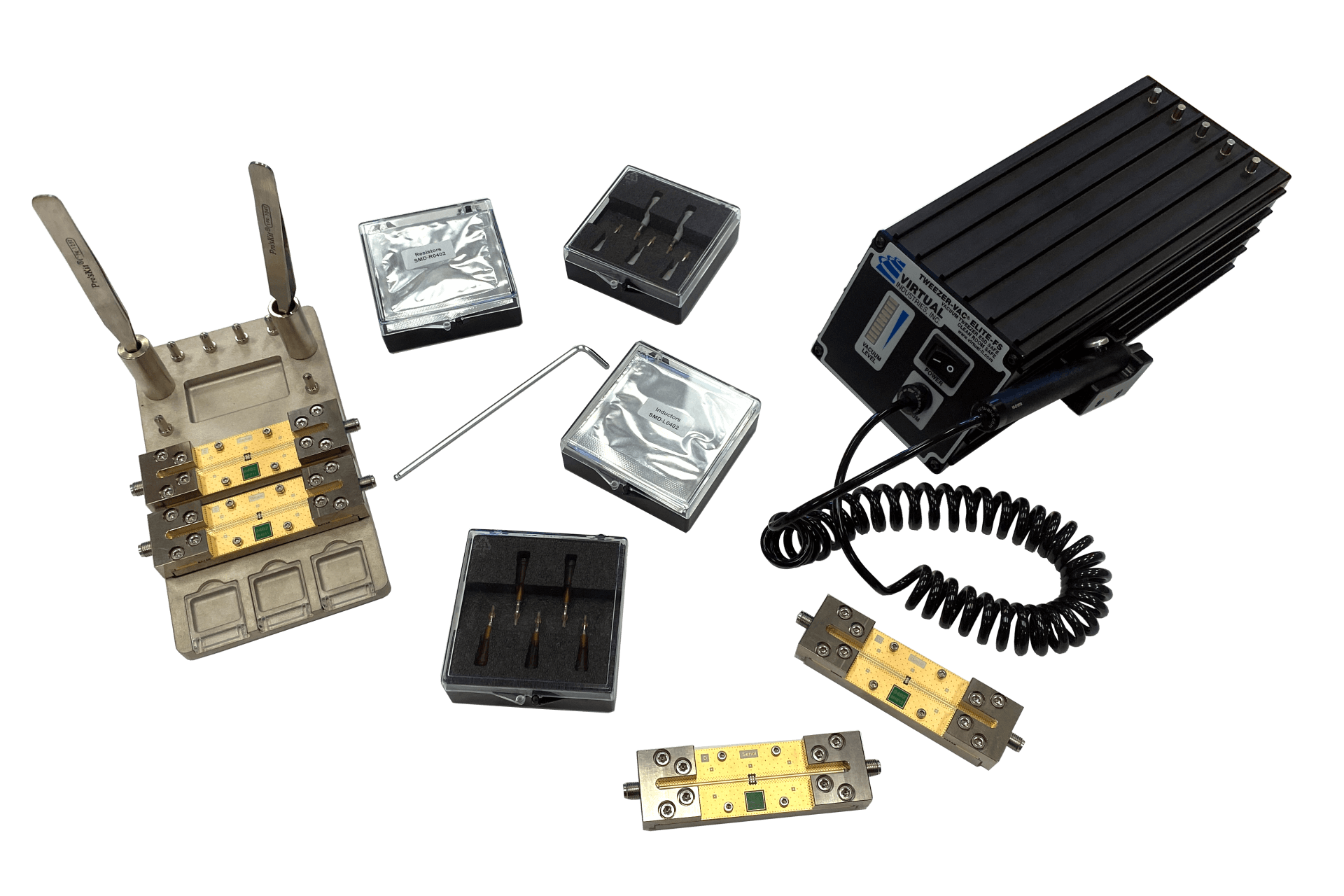

SMD Test Solution
SMD Test Solution is a comprehensive product utilizing a vector network analyzer (sold separately), fixtures, software, and manual, non-destructive characterization of 0402 RLC components. It allows for measurement of SMD components over a wide frequency range from 100 kHz to 20 GHz – an industry first. It is available to use with CMT 2-port 20 GHz Cobalt network analyzers.

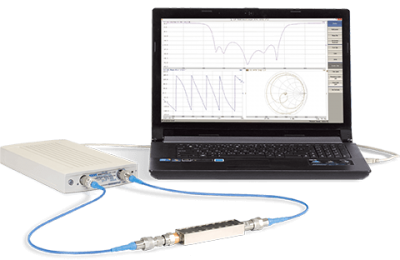

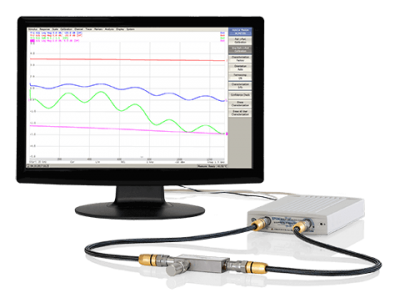

Compact USB VNAs
Our Compact USB VNAs deliver lab grade performance in a compact package, while still providing all the features engineers expect included standard in our software: linear/logarithmic sweeps with multiple trace formats, power sweeps, time domain and gating conversion, frequency offset mode, fixture simulation (embedding/de-embedding), 16 independent channels with up to 16 traces each, markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.

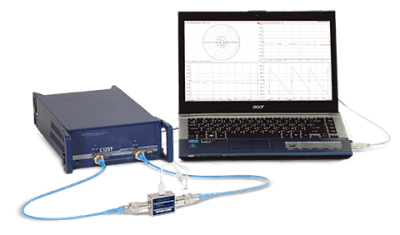

Cobalt USB VNAs
Our Cobalt Vector Network Analyzers deliver industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software: linear/logarithmic sweeps with multiple trace formats, power sweeps, time domain and gating conversion, frequency offset mode, fixture simulation (embedding/de-embedding), 16 independent channels with up to 16 traces each, markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc. We offer the Cobalt series in both 9 GHz and 20 GHz.

75 Ohm Solution USB VNAs
Our 75Ω network analyzers are portable, lightweight, and affordable. These solutions are ideal for applications within the cable and satellite TV industries, including development, production, and repair. Combined with cables, adapters, and impedance matching pads, CMT vector network analyzers provide a comprehensive solution for 75Ω test applications.

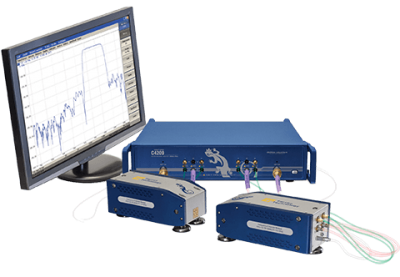

CobaltFx Frequency Extension System
Our CobaltFx cost-effective millimeter wave frequency extension system allows you to build a scalable and affordable 5G testing solution, offered with four extension frequency bands up to 110 GHz. CobaltFx is the first mmWave frequency extension solution that can be anchored by a 9 GHz VNA. The system can be delivered with any of four vector network analyzers including our C4209, C4409, C4220, and C4420. 20 GHz VNAs that are CobaltFx compatible are available for use with third-party frequency extenders, like Virginia Diodes, Inc. This solution with third-party extenders can increase the maximum frequency to 330 GHz.
Where our VNAs are used

Automated Testing Equipment (ATE)

Semiconductor

Internet of Things (IoT)

RF Components

Automotive

Medical Devices

Materials Measurement

Higher Education

Aerospace/Defense

Telecommunications

Cable & Satellite

Consumer Electronics

Energy
